Una completa serie di treppiedi in legno ad altissima stabilità.

Scopri le tipologie di treppiedi e la loro gamma di accessori: Treppiedi della serie REPORT, per carichi fino a 30 Kg ...vedi! Treppiedi della serie UNI, per carichi fino a 50 Kg ...vedi! Accessori per treppiedi ...vedi! Listino prezzi: scaricalo qui! (in formato pdf) I treppiedi Berlebach sono prodotti per... Vixen Sphinx, GP-E , GP , GP-DX Chin. Montierungen / Synta EQ-3 , EQ-4 , EQ-5 , H-EQ5 , Astro-5 Celestron CG-5 GoTo , CG-4 Meade LXD 500 , LXD 55 , ETX Altre marche OTE , GIRO, e altri modelli

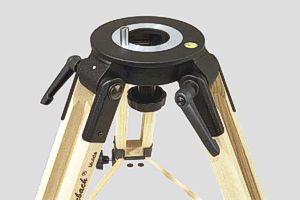

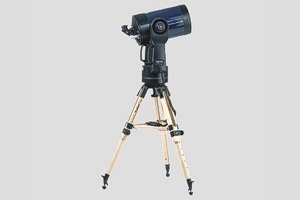

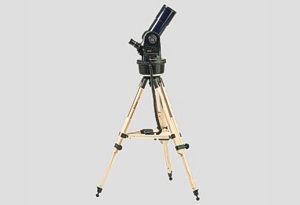

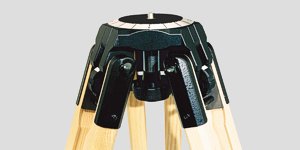

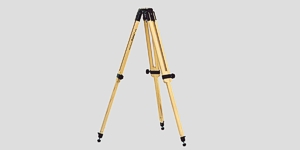

REPORT - Serie x012 Metal clamps are equipped with an eyelet to allow attachment of a steel chain (Accessories - click here.) as required. Mounting head with easy-to-read 360° scale and spring-mounted fastening screw - 1 / 4" standard, 3 / 8" and 5 / 8" optional. Adjustable leg spread possible at an angle of about 20° or about 45°, optional continuously leg spread up to an angle of 90°. The recommended deposit tray (section Accessories - Accessories for the REPORT tripod system) is available as accessories. The practical tray for small items fits between the tripod legs to provide extra stability. In connection with the Adapter recommended for Meade ETX-Astrotelescops (section Accessories for astronomical tripods). All metal clamps are equipped with an eyelet to allow attachment of a steel chain as required (section Accessories - Accessories for the REPORT tripod system). Modello 1012 2012 3012 4012 Transportation length in cm 60 74 87 100 Minimum height with a leg spread of 32° in cm 8 8 8 8 Maximum height with a leg spread of 32° in cm 88 115 138 163 Weight in kg 2,5 2,8 3,2 3,6 Load capacity in kg 20 18 15 10 Deposit tray 27 cm 37 cm 37 cm 50 cm REPORT - Serie x072 Mounting head suitable for GP-installations. Continuously variable leg spread. With the included tray an angle of inclination of approximately 32° can be achieved. Furthermore you can use a steel chain (also included in the delivery). Model 1072 2072 3072 4072 Transportation length in cm 61 75 88 101 Minimum height with a leg spread of 32° in cm 52 62 74 86 Maximum height with a leg spread of 32° in cm 84 103 126 151 Weight in kg 2,4 2,8 3,2 3,5 Load capacity in kg 30 25 20 15 Deposit tray 27 cm 37 cm 37 cm 50 cm

Torna su...

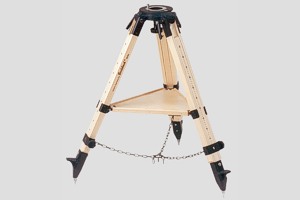

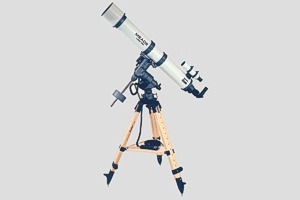

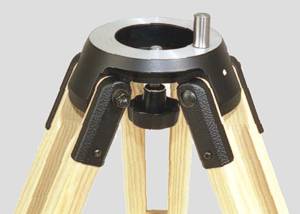

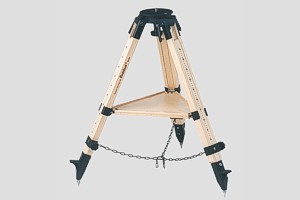

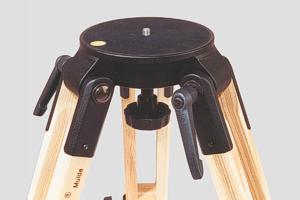

UNI - Serie x8 Mounting head suitable for GP-installations by VIXEN, HEQ5 by Synta as well as LXD 55 and LXD 500 by Meade. Continuously variable leg spread. With the included attachable tray an angle of inclination of approximately 32° can be achieved. Furthermore you can use a steel chain (also included in the delivery). Model 8 18 28 Transportation length in cm 65 89 105 Minimum height with a leg spread of 32° in cm 60 84 93 Maximum height with a leg spread of 32° in cm 84 132 154 Weight in kg 4,8 6,4 7,5 Load capacity in kg 60 55 50 Deposit tray 27 cm 37 cm 50 cm UNI - Serie x4 Mounting head with spring-mounted camera fastening screw: 3/8", 1/2", 5/8". On request other threads available. Continuously variable leg spread. With the included tray an angle of inclination of approximately 32° can be achieved. Furthermore you can use a steel chain (also included in the delivery). Models 4 14 24 Transportation length cm 60 87 103 Minimum height with a leg spread of 32° in cm 60 84 97 Maximum height with a leg spread of 32° in cm 84 132 154 Weight in kg 5,2 6,8 7,9 Load capacity in kg 60 55 50 Deposit tray 27 cm 27 cm 27 cm

Torna su...

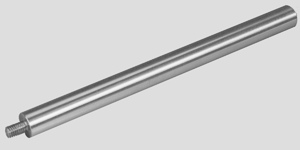

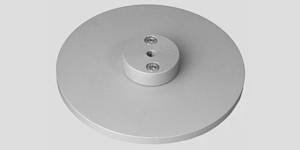

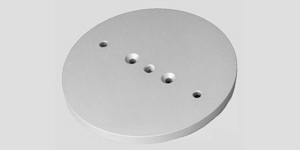

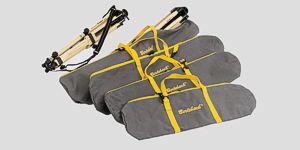

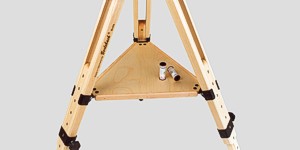

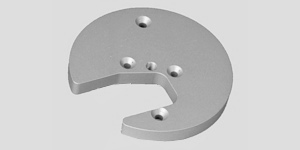

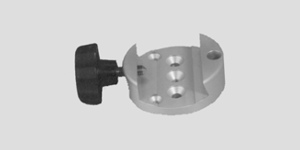

ACCESSORI Giro II - piasta a coda di rondine per montature Vixen, Bresser e Synta Adattatore con fori filettati da 3/8 per ETX 70,90,105,12 Adattatore con filetto M10 per ETX 70, 90, 105, 12 Adattatore filettato da 3/8 multiforo per ETX 9 Barra contrappeso In acciaio diametro 20 mm Vassoio centrale per treppiede Dimensioni: 27x27x27 37x37x37 50x50x50 Borse per il trasporto Adattatore Foto Per teste fotografiche con viti da 1/4" o 3/8" adatto ai modelli UNI 8 ... 28 e REPORT 1072 ... 4072
